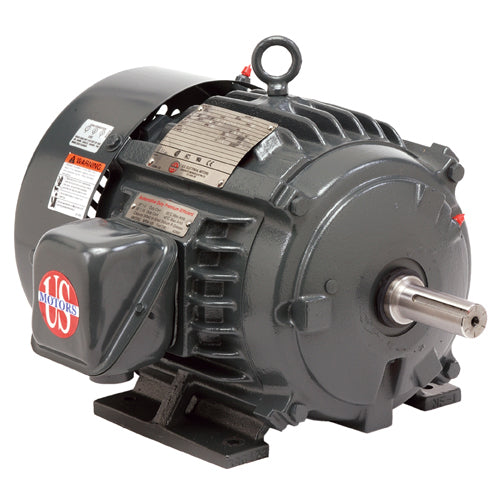

Description
- Definite Purpose ACCU-SERIESâ„¢
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOSTILE DUTYâ„¢ Inverter Duty
- 20:1 (3-60 HZ) Speed Range Variable Torque
- 5:1 (12-60 Hz) Speed Range Constant Torque
Specifications
| Model_Number | DL52 |
|---|---|
| PRODUCT NAME | 30 HP - TE - 1775 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TE |
| HORSEPOWER | 30 |
| KILOWATTS | 22.4 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1775 |
| RPM 2 | 1775 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 286 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | CTI |
| OPPOSITE END BEARING | 6310-J/C3 |
| SHAFT END BEARING | 6310-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 440 |
| BREAKDOWN TORQUE | 256 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 194 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | F |
| LOCKED ROTOR AMPS | 208 |
| NEMA NOMINAL EFFICIENCY | 93.6 |
| FULL LOAD AMPS PRIMARY | 69/34 |
| SERVICE FACTOR AMPS PRIMARY | 80/40 |
