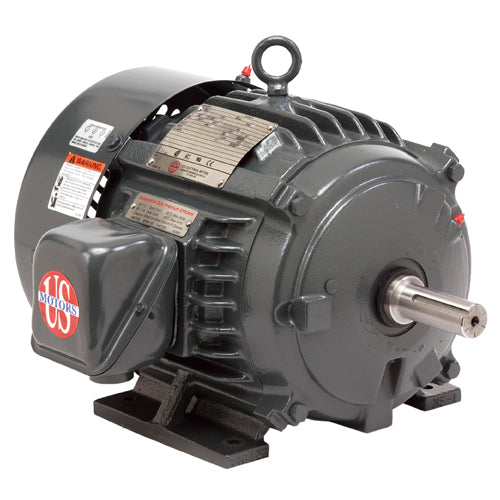

Description
- Definite Purpose ACCU-SERIESâ„¢
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOSTILE DUTYâ„¢ Inverter Duty
- 20:1 (3-60 HZ) Speed Range Variable Torque
- 5:1 (12-60 Hz) Speed Range Constant Torque
Specifications
| Model_Number | G38366 |
|---|---|
| PRODUCT NAME | 2 HP - TE - 1735 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TE |
| HORSEPOWER | 2 |
| KILOWATTS | 1.5 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1735 |
| RPM 2 | 1735 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 145 |
| SHAFT CODE | TC |
| MOUNTING | HORZ-FOOTED |
| MOTOR TYPE | CTI |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6205-2Z-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 82 |
| BREAKDOWN TORQUE | 437 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 357 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 22.4 |
| NEMA NOMINAL EFFICIENCY | 85.5 |
| FULL LOAD AMPS PRIMARY | 5.5/2.8 |
| SERVICE FACTOR AMPS PRIMARY | 6.2/3.1 |
