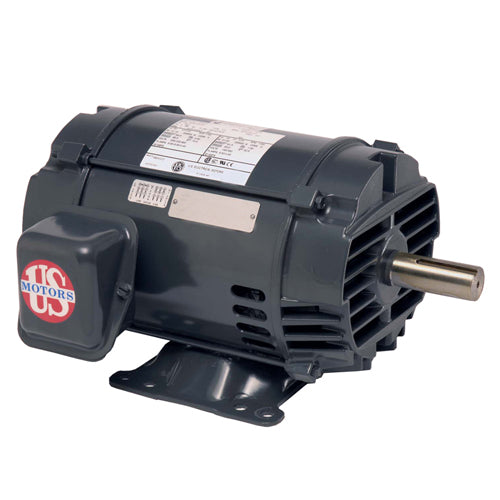

Description
- Special Application
- Three Phase Open Dripproof (ODP)
- Fire Pump Motors
- UL Listed for Fire Pump Applications
Specifications
| Model_Number | FS26 |
|---|---|
| PRODUCT NAME | 150 HP - ODP - 1785 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 150 |
| KILOWATTS | 111.9 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1785 |
| RPM 4 | 1485 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 460 |
| VOLTS | 460 |
| VOLTS 4 | 380 |
| FRME | 444 |
| SHAFT CODE | TS |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | FR |
| OPPOSITE END BEARING | 6313-J |
| SHAFT END BEARING | 6313-J |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 1100 |
| BREAKDOWN TORQUE | 234 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 168 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | F |
| LOCKED ROTOR AMPS | 1083.6 |
| NEMA NOMINAL EFFICIENCY | 95 |
| FULL LOAD AMPS PRIMARY | 171 |
| SERVICE FACTOR AMPS PRIMARY | 196 |
