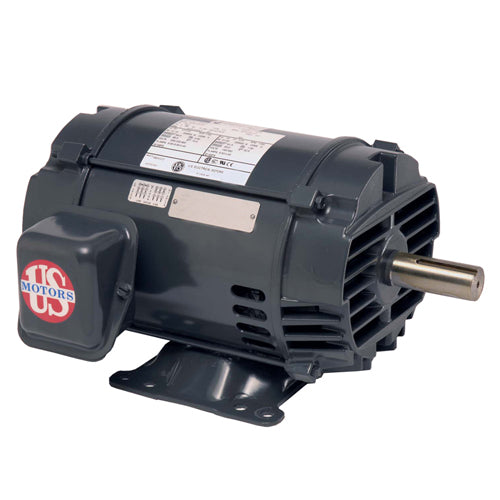

Description
- Special Application
- Three Phase Open Dripproof (ODP)
- Fire Pump Motors
- UL Listed for Fire Pump Applications
Specifications
| Model_Number | AC95 |
|---|---|
| PRODUCT NAME | 150 HP - DP - 3560 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | DP |
| HORSEPOWER | 150 |
| KILOWATTS | 111.9 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3560 |
| RPM 4 | 2960 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 460 |
| VOLTS | 460 |
| VOLTS 4 | 380 |
| FRME | 405 |
| SHAFT CODE | TS |
| MOUNTING | HORZ-FOOTED |
| MOTOR TYPE | FR |
| OPPOSITE END BEARING | 6212-2Z-J |
| SHAFT END BEARING | 6215-2Z-J |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 870 |
| BREAKDOWN TORQUE | 283 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 152 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | F |
| LOCKED ROTOR AMPS | 1033 |
| NEMA NOMINAL EFFICIENCY | 93.6 |
| FULL LOAD AMPS PRIMARY | 165 |
| SERVICE FACTOR AMPS PRIMARY | 193 |
