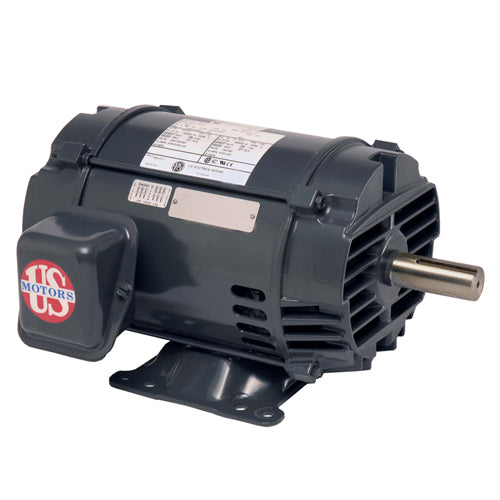

Description
- Special Application
- Three Phase Open Dripproof (ODP)
- Fire Pump Motors
- UL Listed for Fire Pump Applications
Specifications
| Model_Number | HB22 |
|---|---|
| PRODUCT NAME | 125 HP - ODP - 2965 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 125 |
| KILOWATTS | 93.2 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 2965 |
| HERTZ | 50 |
| VOLTS PRIMARY | 380 |
| VOLTS | 380 |
| FRME | 405 |
| SHAFT CODE | TS |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | FR |
| OPPOSITE END BEARING | 6212-2Z-J |
| SHAFT END BEARING | 6215-2Z-J |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 800 |
| BREAKDOWN TORQUE | 290 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 152 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | F |
| LOCKED ROTOR AMPS | 1031 |
| NEMA NOMINAL EFFICIENCY | 94.1 |
| FULL LOAD AMPS PRIMARY | 166 |
| SERVICE FACTOR AMPS PRIMARY | 193 |
