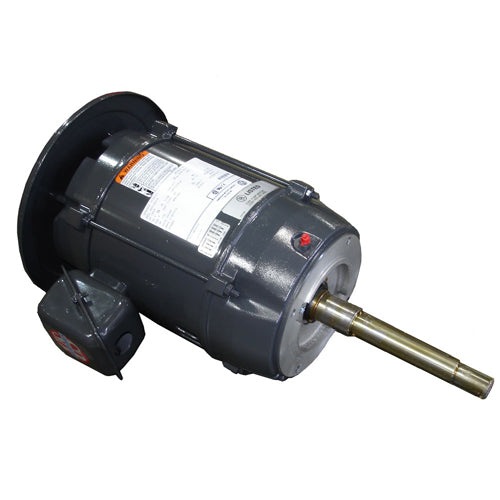

Description
- Special Application
- Three Phase Open Dripproof (ODP)
- Fire Pump Motors Vertical Close Coupled Pump
- UL Listed for Fire Pump Applications
- JP Shaft - Footless
Specifications
| Model_Number | HH19 |
|---|---|
| PRODUCT NAME | 100 HP - ODP - 3550 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 100 |
| KILOWATTS | 74.6 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3550 |
| RPM 2 | 3550 |
| HERTZ | 60 |
| VOLTS PRIMARY | 200/400 |
| VOLTS | 400 |
| VOLTS 2 | 200 |
| FRME | 365 |
| SHAFT CODE | JP |
| MOUNTING | HORZ-FOOTLESS |
| ASSEMBLY POSITION | NA |
| MOTOR TYPE | FDF1 |
| OPPOSITE END BEARING | 6212-2Z-J/C3 |
| SHAFT END BEARING | 6314-2Z-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 480 |
| BREAKDOWN TORQUE | 282 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 182 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 818 |
| NEMA NOMINAL EFFICIENCY | 93 |
| FULL LOAD AMPS PRIMARY | 260/130 |
| SERVICE FACTOR AMPS PRIMARY | 303/152 |
