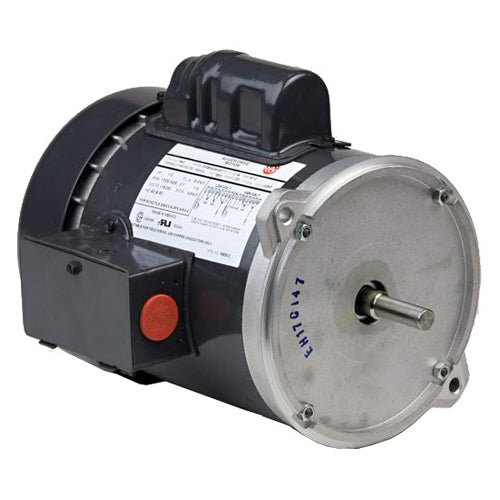

Description
- Special Application Farm
- Three Phase
- Dust Tight & Auger Duty Motors
- 3-Phase
- Auger Duty
Specifications
| Model_Number | P063FPE4275015B |
|---|---|
| PRODUCT NAME | .33 HP - - 1425 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | .33 |
| KILOWATTS | 0.3 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1425 |
| RPM 2 | 1725 |
| HERTZ | 50 |
| HERTZ 2 | 60 |
| VOLTS PRIMARY | 190/380 |
| VOLTS | 190 |
| VOLTS 2 | 380 |
| VOLTS 4 | 208 |
| VOLTS 5 | 230 |
| FRME | 56 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 6.3 |
| STACK | 1.25 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1 |
| SHIPPING WEIGHT | 26 |
| BREAKDOWN TORQUE | 114.2 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 90.43 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| LOCKED ROTOR AMPS | 11.96 |
| FULL LOAD AMPS PRIMARY | 2.0/1.0 & 1.8-2.0/1.0 |
