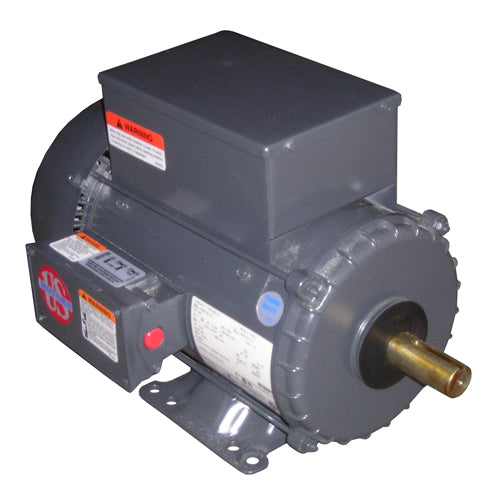

Description
- Special Application Farm
- Totally Enclosed Fan Cooled (TEFC)
- Agri Duty High Torque
- Single Phase Capacitor Start
- Footed
Specifications
| Model_Number | C063FJS5563015B |
|---|---|
| PRODUCT NAME | .33 HP - TEFC - 1725 |
| PHASETYPE | 1_CAPACITOR START |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | .33 |
| KILOWATTS | 0.3 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/230 V |
| VOLTS | 115 |
| VOLTS 2 | 230 |
| FRME | 56 |
| STATOR DIAMETER | 6.3 |
| STACK | 1.25 |
| MOUNTING | RIGID |
| MOTOR TYPE | SMA |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | 198.45 |
| SHIPPING WEIGHT | 25 |
| THERMAL PROTECTION | MANUAL RESET |
| BREAKDOWN TORQUE | 54.95 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 73.41 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 28.3 |
| NEMA NOMINAL EFFICIENCY | 59.5 |
| FULL LOAD AMPS PRIMARY | 6.6/3.3 |
| SERVICE FACTOR AMPS PRIMARY | 6.8/3.4 |
