Description

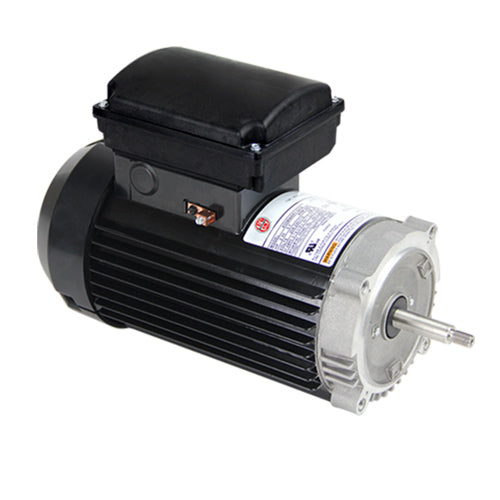

- AQUA-SHIELD PRO TEFC Pool & Spa Motor
- Switchless Design 5.5" Frame Dia.
- C-Flange Category "J"
- Finned Aluminum Frame IPX5
- THP Rated 1081 Design
Specifications
| Model_Number | K063FJY5086013J |
|---|---|
| PRODUCT NAME | 1.25 HP - - 3450 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | 1.25 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/115 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 115 |
| FRME | 56 |
| SHAFT CODE | J |
| STATOR DIAMETER | 6.3 |
| STACK | 2 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 50 |
| ROTATION | CCW DRIVE END |
| RUNCAPMFD | 50 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 29 |
| BREAKDOWN TORQUE | 78.8 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 14.09 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 25.65 |
| FULL LOAD AMPS PRIMARY | 5.9-5.5/11.0 |
