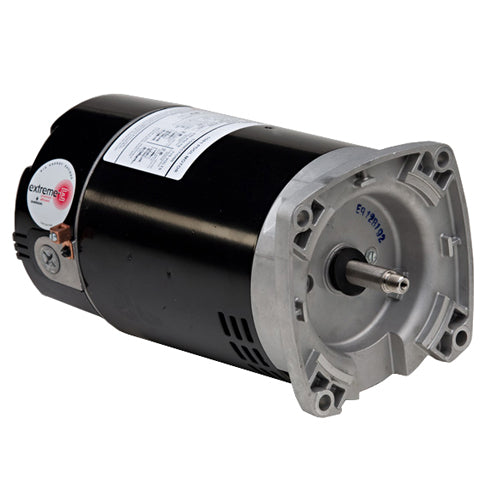

Description
- Three Phase Pool & Spa
- Square & C-Face Flange
- Square Flange Full Service Factor Full Rated
Specifications
| Model_Number | P063GEK4516014J |
|---|---|
| PRODUCT NAME | .75 HP - - 3450 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | .75 |
| KILOWATTS | 0.6 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| RPM 2 | 2850 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 6.3 |
| STACK | 1.375 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 50 |
| ROTATION | CW LEAD END REV |
| SERVICE FACTOR | 1.65 |
| SHIPPING WEIGHT | 23 |
| BREAKDOWN TORQUE | 89.56 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 51.02 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | N |
| LOCKED ROTOR AMPS | 18.03 |
| SERVICE FACTOR AMPS PRIMARY | 4.1-3.8/1.9 |
