Description

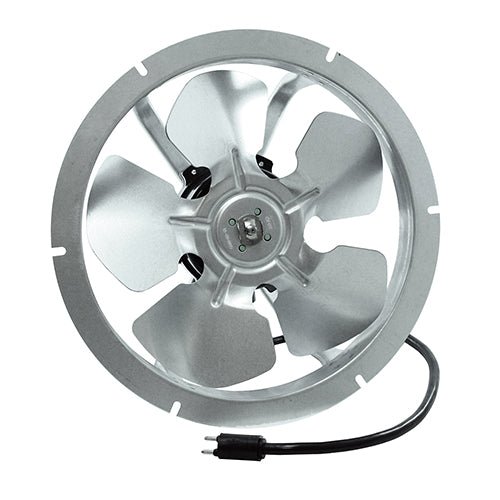

- RESCUE® 58 MM ECM with Fan Pack
- Up to 70% Efficient
- Five blades 72 pitch degrees
- Dual Voltage Lyall Plug
- IP67 Rated
Specifications
| MODEL NUMBER | M035TAW0115013B |
|---|---|
| CATALOG NUMBER | EC5470FP |
| PHASE TYPE | 1_BPM |
| MOTOR ENCLOSURE | TEAO |
| POLES | 4 |
| RPM | 1550RPM |
| HERTZ | 60 |
| VOLTS PRIMARY | 115-230 |
| VOLTS | 115 |
| VOLTS 2 | 230 |
| MOTOR TYPE | FHP |
| AMBIENT | -40°C to 55°C |
| ROTATION | CW OSE |
| SHIPPING WEIGHT | 7 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| INSULATION CLASS | A |
| FULL LOAD AMPS PRIMARY | 0.09-0.60 |
