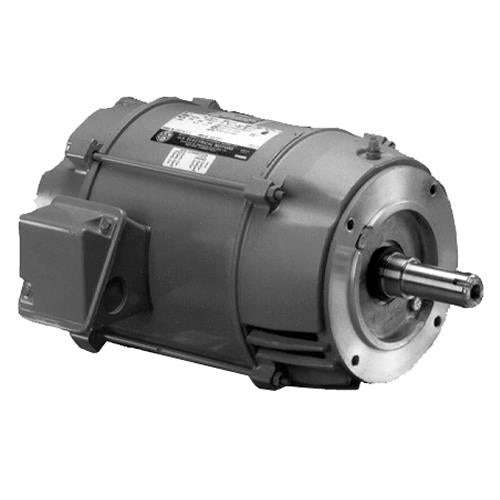

Description
- Special Application Close Coupled Pump
- Three Phase
- Open Dripproof (ODP)
- Energy Efficient
- JM Shaft - Footless
Specifications
| Model_Number | DB09 |
|---|---|
| PRODUCT NAME | 1 HP - DP - 1740 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | DP |
| HORSEPOWER | 1 |
| KILOWATTS | 0.7 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1740 |
| RPM 2 | 1740 |
| RPM 3 | 1725 |
| RPM 4 | 1420 |
| RPM 5 | 1420 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 143 |
| SHAFT CODE | JM |
| MOUNTING | HORZ-FOOTLESS |
| ASSEMBLY POSITION | NA |
| MOTOR TYPE | FDF4 |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6207-2Z-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 41 |
| BREAKDOWN TORQUE | 393 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 305 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 10.6 |
| NEMA NOMINAL EFFICIENCY | 82.5 |
| FULL LOAD AMPS PRIMARY | 3.1-3/1.5 |
| SERVICE FACTOR AMPS PRIMARY | 3.5-3.3/1.6 |
