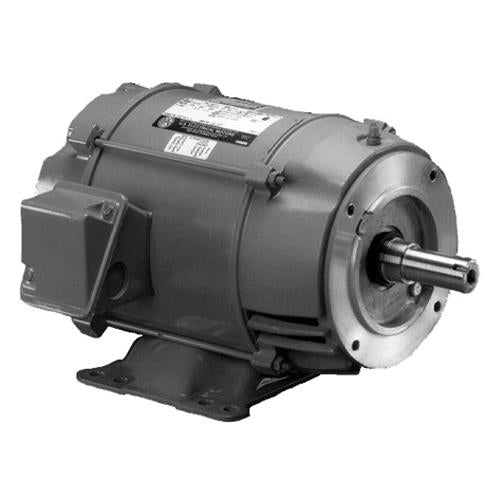

Description
- Special Application Close Coupled Pump
- Three Phase
- Open Dripproof (ODP)
- Premium Efficient
- JP Shaft - Footed
Specifications
| Model_Number | CS27 |
|---|---|
| PRODUCT NAME | 15 HP - - 3495 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | 15 |
| KILOWATTS | 11.2 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3495 |
| HERTZ | 60 |
| VOLTS PRIMARY | 200 |
| VOLTS | 200 |
| FRME | 215 |
| SHAFT CODE | JP |
| MOUNTING | HORZ-FOOTED |
| MOTOR TYPE | DE1 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 105 |
| BREAKDOWN TORQUE | 272 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 173 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 253.4 |
| NEMA NOMINAL EFFICIENCY | 90.2 |
| FULL LOAD AMPS PRIMARY | 41 |
| SERVICE FACTOR AMPS PRIMARY | 48 |
