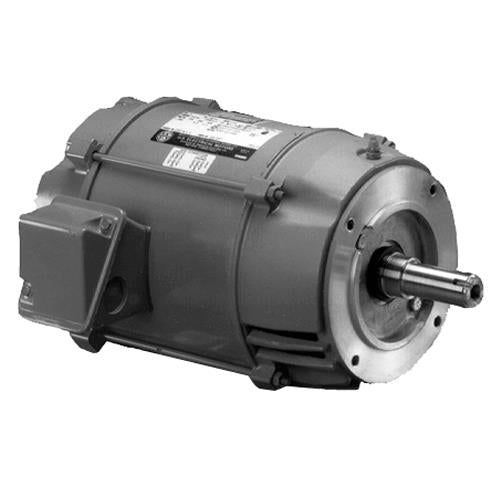

US Motors DJ15P1DJ - 15 HP - ODP - 3490 RPM


Price:
Sale price$1,470.59

Description

  • Special Application Close Coupled Pump
  • Three Phase
  • Open Dripproof (ODP)
  • Premium Efficient
  • Westcoast Shaft - Footed

Specifications

Model_Number FM64
PRODUCT NAME 15 HP - ODP - 3490
PHASETYPE 3_PHASE
MOTOR ENCLOSURE ODP
HORSEPOWER 15
KILOWATTS 11.2
POLES 2
NUMBER SPEEDS 1
RPM 3490
RPM 2 3490
RPM 3 3455
RPM 4 2830
RPM 5 2830
HERTZ 60
HERTZ 2 50
VOLTS PRIMARY 208-230/460
VOLTS 460
VOLTS 2 230
VOLTS 3 208
VOLTS 4 380
VOLTS 5 190
FRME 215
SHAFT CODE TCZ
MOUNTING HORZ-FOOTED
ASSEMBLY POSITION F1
MOTOR TYPE DE3
OPPOSITE END BEARING 6205-2Z-J/C3
SHAFT END BEARING 6309-2Z-J/C3
AMBIENT 40
SERVICE FACTOR 1.15
STARTCAPMFD N\A
SHIPPING WEIGHT 105
BREAKDOWN TORQUE 268
BREAKDOWN TORQUE UOM PERCENT OF FLT
LOCKED ROTOR TORQUE 170
LOCKED ROTOR TORQUE UOM PERCENT OF FLT
INSULATION CLASS F
KVA CODE LETTER F
LOCKED ROTOR AMPS 108.2
NEMA NOMINAL EFFICIENCY 90.2
FULL LOAD AMPS PRIMARY 40-36/18
SERVICE FACTOR AMPS PRIMARY 0-42/20.8

Technical Data
