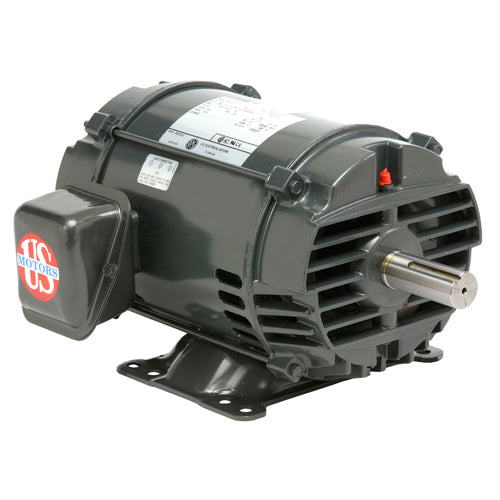

Description
- Special Application
- Three Phase Open Dripproof (ODP)
- Elevator Motor
- Dry Hydraulic Motor
Specifications
| Model_Number | FV23 |
|---|---|
| PRODUCT NAME | 20 HP - ODP - 3410 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 20 |
| KILOWATTS | 14.9 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3410 |
| RPM 2 | 3410 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 215 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | FD |
| OPPOSITE END BEARING | 6205-2Z-J/C3 |
| SHAFT END BEARING | 6208-2Z-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 105 |
| BREAKDOWN TORQUE | 205 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 130 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | D |
| LOCKED ROTOR AMPS | 110.2 |
| NEMA NOMINAL EFFICIENCY | 85.5 |
| FULL LOAD AMPS PRIMARY | 51/25.3 |
