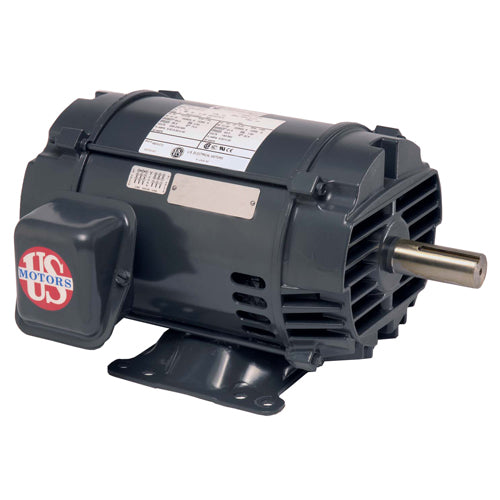

US Motors D5P4D - 5 HP - ODP - 885 RPM


Price:
Sale price$2,147.71

Description

  • Three Phase
  • General Purpose
  • Open Dripproof (ODP)
  • NEMA Premium Efficient
  • Rigid Base

Specifications

Model_Number FP77
PRODUCT NAME 5 HP - ODP - 885
PHASETYPE 3_PHASE
MOTOR ENCLOSURE ODP
HORSEPOWER 5
KILOWATTS 3.7
POLES 8
NUMBER SPEEDS 1
RPM 885
RPM 2 885
RPM 3 880
RPM 4 730
RPM 5 730
HERTZ 60
HERTZ 2 50
VOLTS PRIMARY 208-230/460
VOLTS 460
VOLTS 2 230
VOLTS 3 208
VOLTS 4 380
VOLTS 5 190
FRME 254
SHAFT CODE T
MOUNTING HORZ-FOOTED
ASSEMBLY POSITION F1
MOTOR TYPE DE
OPPOSITE END BEARING 6309-2Z-J/C3
SHAFT END BEARING 6309-2Z-J/C3
AMBIENT 40
SERVICE FACTOR 1.15
STARTCAPMFD N\A
SHIPPING WEIGHT 150
BREAKDOWN TORQUE 275
BREAKDOWN TORQUE UOM PERCENT OF FLT
LOCKED ROTOR TORQUE 186
LOCKED ROTOR TORQUE UOM PERCENT OF FLT
INSULATION CLASS F
KVA CODE LETTER H
LOCKED ROTOR AMPS 39.9
NEMA NOMINAL EFFICIENCY 88.5
FULL LOAD AMPS PRIMARY 16.2-15.7/7.9
SERVICE FACTOR AMPS PRIMARY 18.3-17.3/8.6
