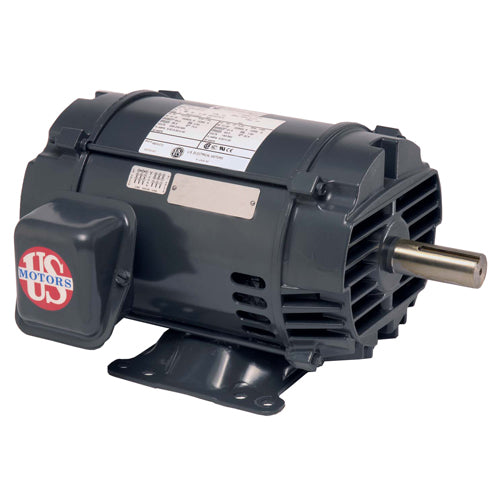

US Motors D300P1FS - 300 HP - ODP - 3565 RPM


Price:
Sale price$23,985.20

Description

  • Three Phase
  • General Purpose
  • Open Dripproof (ODP)
  • NEMA Premium Efficient
  • Rigid Base

Specifications

Model_Number FS40
PRODUCT NAME 300 HP - ODP - 3565
PHASETYPE 3_PHASE
MOTOR ENCLOSURE ODP
HORSEPOWER 300
KILOWATTS 223.7
POLES 2
NUMBER SPEEDS 1
RPM 3565
RPM 4 2945
HERTZ 60
HERTZ 2 50
VOLTS PRIMARY 460
VOLTS 460
VOLTS 4 380
FRME 445
SHAFT CODE TS
MOUNTING HORZ-FOOTED
ASSEMBLY POSITION F1
MOTOR TYPE RE
OPPOSITE END BEARING 6313-J
SHAFT END BEARING 6313-J
AMBIENT 40
SERVICE FACTOR 1.15
STARTCAPMFD N\A
SHIPPING WEIGHT 1200
BREAKDOWN TORQUE 281
BREAKDOWN TORQUE UOM PERCENT OF FLT
LOCKED ROTOR TORQUE 146
LOCKED ROTOR TORQUE UOM PERCENT OF FLT
INSULATION CLASS F
KVA CODE LETTER G
LOCKED ROTOR AMPS 2268
NEMA NOMINAL EFFICIENCY 95.4
FULL LOAD AMPS PRIMARY 325
SERVICE FACTOR AMPS PRIMARY 375
