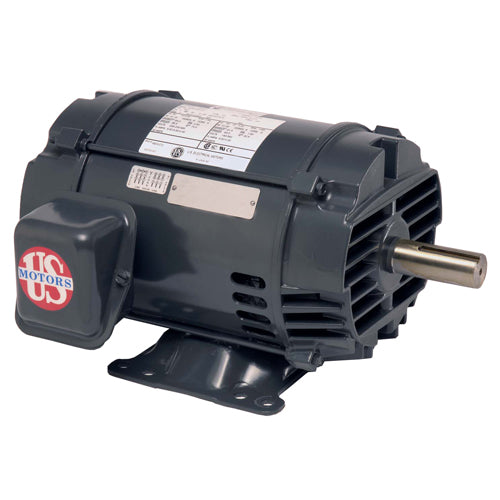

Description
- Three Phase
- General Purpose
- Open Dripproof (ODP)
- NEMA Premium Efficient
- Rigid Base
Specifications
| Model_Number | FS80 |
|---|---|
| PRODUCT NAME | 1 HP - ODP - 865 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 1 |
| KILOWATTS | 0.7 |
| POLES | 8 |
| NUMBER SPEEDS | 1 |
| RPM | 865 |
| RPM 2 | 865 |
| RPM 4 | 700 |
| RPM 5 | 700 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 182 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | DE |
| OPPOSITE END BEARING | 6206-2Z-J/C3 |
| SHAFT END BEARING | 6206-2Z-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 50 |
| BREAKDOWN TORQUE | 301 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 225 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | J |
| LOCKED ROTOR AMPS | 10.1 |
| NEMA NOMINAL EFFICIENCY | 75.5 |
| FULL LOAD AMPS PRIMARY | 4.5/2.2 |
| SERVICE FACTOR AMPS PRIMARY | 4.7/2.4 |
