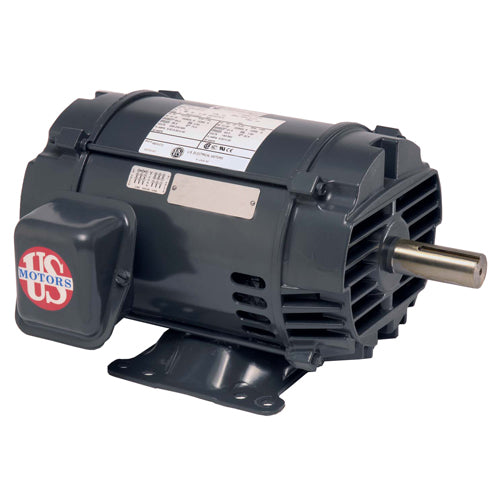

Description
- Three Phase
- General Purpose
- Open Dripproof (ODP)
- NEMA Premium Efficient
- Rigid Base
Specifications
| Model_Number | FE11 |
|---|---|
| PRODUCT NAME | 1 HP - ODP - 1165 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 1 |
| KILOWATTS | 0.7 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1165 |
| RPM 2 | 1165 |
| RPM 3 | 1155 |
| RPM 4 | 950 |
| RPM 5 | 950 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 145 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | DE |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6205-2Z-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 35 |
| BREAKDOWN TORQUE | 444 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 339 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 12.3 |
| NEMA NOMINAL EFFICIENCY | 82.5 |
| FULL LOAD AMPS PRIMARY | 4-4/2 |
| SERVICE FACTOR AMPS PRIMARY | 4.3-4.3/2.1 |
