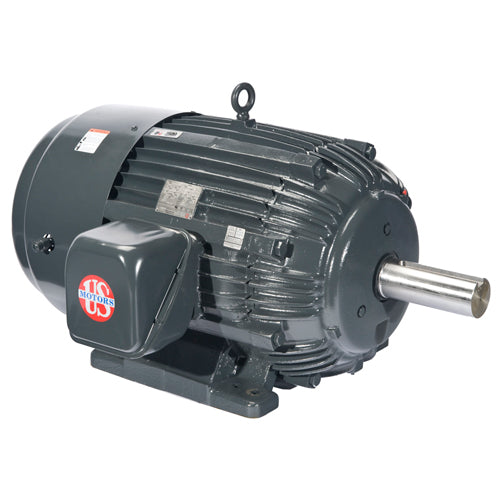

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- CORRO-DUTY®
- NEMA®†Premium Efficient
Specifications
| Model_Number | DF58 |
|---|---|
| PRODUCT NAME | 3 HP - TE - 1175 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TE |
| HORSEPOWER | 3 |
| KILOWATTS | 2.2 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1175 |
| RPM 2 | 1175 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 213 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | TCE |
| OPPOSITE END BEARING | 6208-J/C3 |
| SHAFT END BEARING | 6208-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 190 |
| INSULATION CLASS | F |
| KVA CODE LETTER | J |
| NEMA NOMINAL EFFICIENCY | 89.5 |
| FULL LOAD AMPS PRIMARY | 8.8/4.4 |
| SERVICE FACTOR AMPS PRIMARY | 9.7/4.9 |
