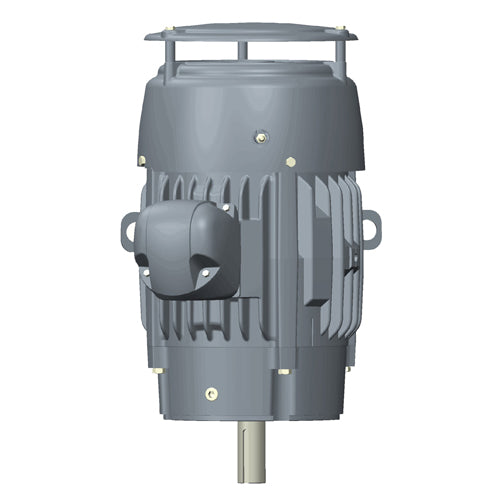

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- CORRO-DUTY®
- Premium Efficient
- Vertical C Face
Specifications
| Model_Number | DW64 |
|---|---|
| PRODUCT NAME | 1 HP - TEFC - 3520 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 1 |
| KILOWATTS | 0.7 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3520 |
| RPM 2 | 3520 |
| RPM 3 | 3495 |
| RPM 4 | 2895 |
| RPM 5 | 2895 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 143 |
| SHAFT CODE | TC |
| MOUNTING | VERT |
| ASSEMBLY POSITION | NA |
| MOTOR TYPE | TCEF |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6205-2Z-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 65 |
| BREAKDOWN TORQUE | 420 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 290 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | M |
| LOCKED ROTOR AMPS | 12.7 |
| NEMA NOMINAL EFFICIENCY | 80 |
| FULL LOAD AMPS PRIMARY | 2.9-2.7/1.4 |
| SERVICE FACTOR AMPS PRIMARY | 3.3-3/1.5 |
