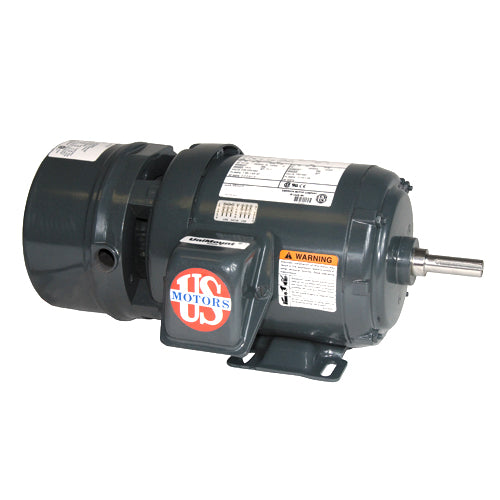

US Motors BMU2P2DCR - 2 HP - TEFC - 1750 RPM


Price:
Sale price$1,620.01

Description

  • UNIMOUNT® Brakemotor
  • Totally Enclosed Fan Cooled (TEFC) Motor
  • C-Face Footless

Specifications

Model_Number FR32
PRODUCT NAME 2 HP - TEFC - 1750
PHASETYPE 3_PHASE
MOTOR ENCLOSURE TEFC
HORSEPOWER 2
KILOWATTS 1.5
POLES 4
NUMBER SPEEDS 1
RPM 1750
RPM 2 1750
RPM 3 1735
RPM 4 1430
RPM 5 1430
HERTZ 60
HERTZ 2 50
VOLTS PRIMARY 208-230/460
VOLTS 460
VOLTS 2 230
VOLTS 3 208
VOLTS 4 380
VOLTS 5 190
FRME 145
SHAFT CODE TC
MOUNTING HORZ-FOOTLESS
ASSEMBLY POSITION NA
MOTOR TYPE UTEF
OPPOSITE END BEARING 6203-2Z-J/C3
SHAFT END BEARING 6205-2Z-J/C3
AMBIENT 40
ROTATION DUAL
SERVICE FACTOR 1.25
STARTCAPMFD N\A
SHIPPING WEIGHT 35
BREAKDOWN TORQUE 478
BREAKDOWN TORQUE UOM PERCENT OF FLT
LOCKED ROTOR TORQUE 368
LOCKED ROTOR TORQUE UOM PERCENT OF FLT
INSULATION CLASS F
KVA CODE LETTER M
LOCKED ROTOR AMPS 25.3
NEMA NOMINAL EFFICIENCY 86.5
FULL LOAD AMPS PRIMARY 5.9-5.7/2.8
SERVICE FACTOR AMPS PRIMARY 7.3-6.7/3.3
