Description

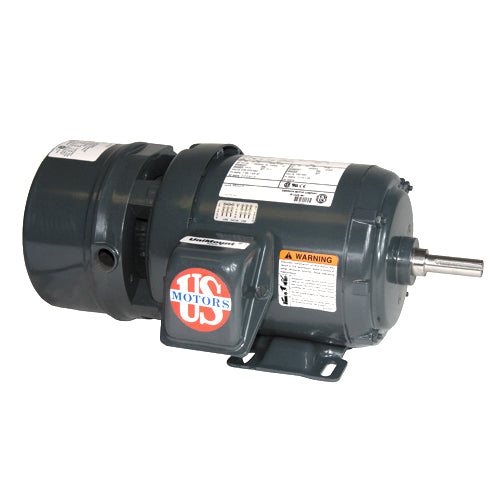

- UNIMOUNT® Brakemotor
- Totally Enclosed Fan Cooled (TEFC) Motor
- C-Face Footless
Specifications
| Model_Number | CE50 |
|---|---|
| PRODUCT NAME | 1 HP - TEFC - 1755 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 1 |
| KILOWATTS | 0.7 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1755 |
| RPM 2 | 1755 |
| RPM 3 | 1740 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| FRME | 143 |
| SHAFT CODE | TC |
| MOUNTING | HORZ-FOOTLESS |
| ASSEMBLY POSITION | NA |
| MOTOR TYPE | UTF |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6205-2Z-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.25 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 40 |
| BREAKDOWN TORQUE | 485 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 371 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | M |
| LOCKED ROTOR AMPS | 13.3 |
| NEMA NOMINAL EFFICIENCY | 81.5 |
| FULL LOAD AMPS PRIMARY | 3.1-3.2/1.6 |
| SERVICE FACTOR AMPS PRIMARY | 3.8-3.7/1.8 |
