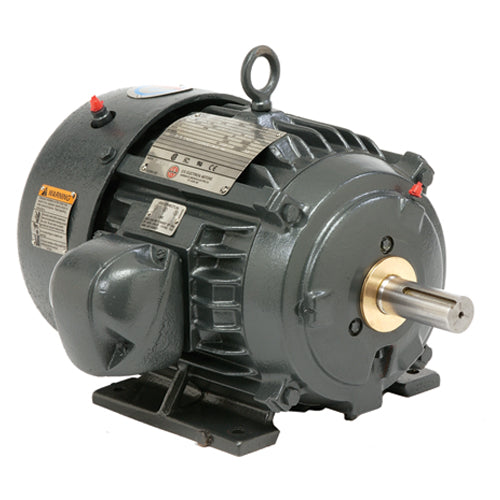

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- 841 PLUS®
- NEMA®†Premium Efficient
Specifications
| Model_Number | BH48 |
|---|---|
| PRODUCT NAME | 1 HP - TE - 1160 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TE |
| HORSEPOWER | 1 |
| KILOWATTS | 0.7 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1160 |
| HERTZ | 60 |
| VOLTS PRIMARY | 460 |
| VOLTS | 460 |
| FRME | 145 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | CE |
| OPPOSITE END BEARING | 25BC02JPP3 |
| SHAFT END BEARING | 25BC02JPP3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 70 |
| BREAKDOWN TORQUE | 399 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 300 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 10.9 |
| NEMA NOMINAL EFFICIENCY | 81.5 |
| FULL LOAD AMPS PRIMARY | 1.8 |
| SERVICE FACTOR AMPS PRIMARY | 2 |
