Description

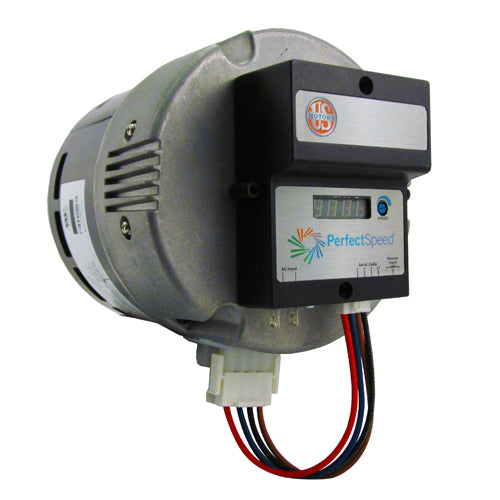

- RESCUE PerfectSpeed® ECM
- Direct Drive Blower
- Adjust motor speed by using on-board
- or 0-10 Vdc user-supplied
- external potentiometer
Specifications
| Model_Number | M055DSC0748011B |
|---|---|
| PRODUCT NAME | .5 HP - OPAO - 1800 |
| PHASETYPE | 1_BRUSHLESS PERMANEN |
| MOTOR ENCLOSURE | OPAO |
| HORSEPOWER | .5 |
| HORSEPOWER 2 | 0.333 |
| POLES | 10 |
| NUMBER SPEEDS | 1 |
| RPM | 1800 |
| HERTZ | 50 |
| HERTZ 2 | 60 |
| VOLTS PRIMARY | 120/240 V |
| VOLTS | 120 |
| VOLTS 2 | 240 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 1.375 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 60 |
| ROTATION | CCW LEAD END |
| SHIPPING WEIGHT | 12 |
| THERMAL PROTECTION | ELECTRONICALLY |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| FULL LOAD AMPS PRIMARY | 5.6/3.2 |
