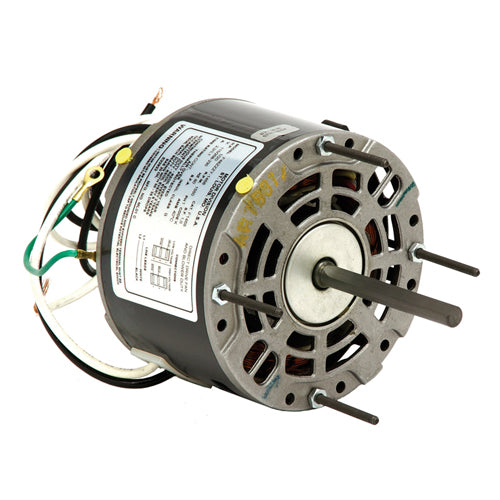

Description
- Permanent Split Capacitor
- 21/29 Frame Replacement Motor
- 5.0" Dia. Open Air Over
- Hub Mount Bracket (2-1/4")
- Single Speed
Specifications
| Model_Number | K048WHE4395013B |
|---|---|
| PRODUCT NAME | .167 HP - ODP - 1550 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | .167 |
| KILOWATTS | 0.1 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1550 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/230 V |
| VOLTS | 115 |
| VOLTS 2 | 230 |
| FRME | 42 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 4.8 |
| STACK | 0.875 |
| MOUNTING | RESILIENT |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | SELF-ALIGN |
| SHAFT END BEARING | SELF-ALIGN |
| AMBIENT | 40 |
| ROTATION | CW LEAD END |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 5 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 8 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 13.46 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 4.692 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 4.95 |
| FULL LOAD AMPS PRIMARY | 2.4/1.2 |
