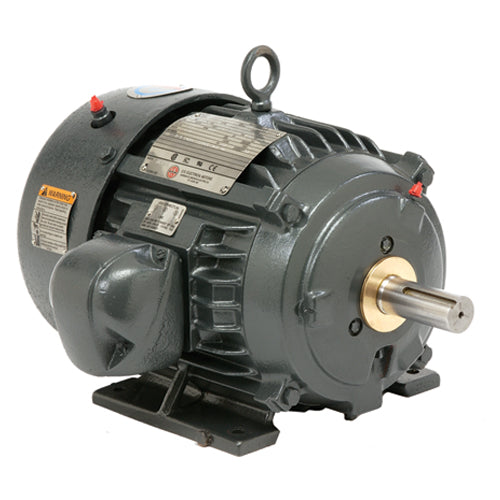

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- 661 PLUS®
- Premium Efficient
Specifications
| Model_Number | FR51 |
|---|---|
| PRODUCT NAME | 30 HP - TEFC - 1775 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 30 |
| KILOWATTS | 22.4 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1775 |
| HERTZ | 60 |
| VOLTS PRIMARY | 460 |
| VOLTS | 460 |
| FRME | 286 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | W6 |
| MOTOR TYPE | CE |
| OPPOSITE END BEARING | 50BC03J3 |
| SHAFT END BEARING | 50RU03J3 |
| AMBIENT | 50 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 410 |
| BREAKDOWN TORQUE | 260 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 197 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | F |
| LOCKED ROTOR AMPS | 209 |
| NEMA NOMINAL EFFICIENCY | 93.6 |
| FULL LOAD AMPS PRIMARY | 35 |
| SERVICE FACTOR AMPS PRIMARY | 40 |
