Description

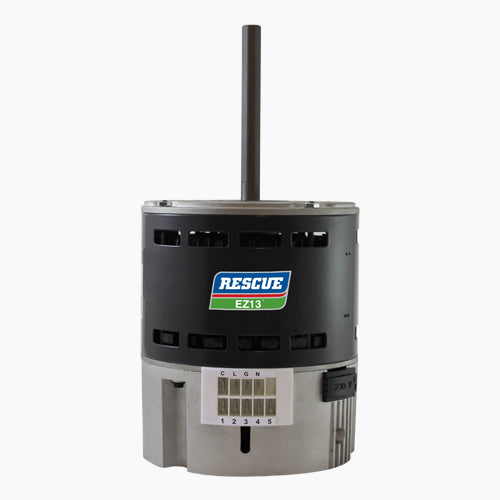

- RESCUE® EZ13™ ECM
- Direct Drive Blower
- Universal ECM Replacement for Selectech X13 and EnduraPro
- Auto-Sensing Rotation
- Ready to install No Programming required
Specifications
| Model_Number | M055TZF0093015B |
|---|---|
| PRODUCT NAME | .75 HP - OPAO - 1075 |
| PHASETYPE | 1_BRUSHLESS PERMANEN |
| MOTOR ENCLOSURE | OPAO |
| HORSEPOWER | .75 |
| KILOWATTS | 0.6 |
| POLES | 10 |
| NUMBER SPEEDS | 1 |
| RPM | 1075 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 115/208-230 V |
| VOLTS | 115 |
| VOLTS 2 | 208 |
| VOLTS 3 | 230 |
| FRME | 48 |
| SHAFT CODE | Y |
| STACK | 1.55 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SHIPPING WEIGHT | 12 |
| THERMAL PROTECTION | ELECTRONICALLY PROTECTED MOTOR |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| FULL LOAD AMPS PRIMARY | 9.3/5.8-5.4 & 9.3/5.8-5.4 |
