Description

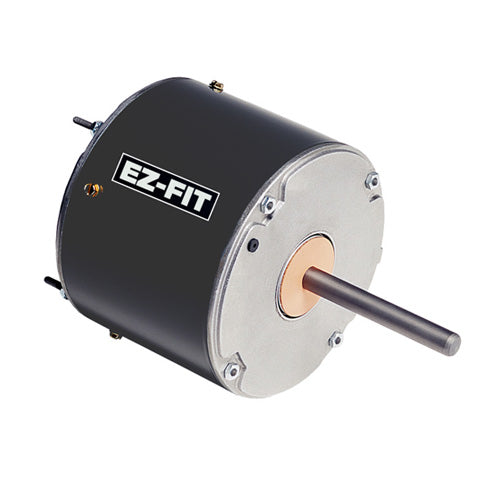

- EZ-FIT® Permanent Split Capacitor Motor
- Condenser Fan
- 5.6" Dia. Totally Enclosed Air Over
- Multi-Horsepower
- Mounting shell holes with screws
Specifications
| Model_Number | K055WCT0244012B |
|---|---|
| PRODUCT NAME | .333 HP - TEAO - 1075 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | .333 |
| HORSEPOWER 2 | 0.167 |
| KILOWATTS | 0.3 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1075 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230 V |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 1.5 |
| MOUNTING | STUD |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6201 |
| SHAFT END BEARING | 6201 |
| AMBIENT | 60 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 7.5 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 13 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 41.35 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 7.514 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 4.66 |
| FULL LOAD AMPS PRIMARY | 2.0 |
| SERVICE FACTOR AMPS PRIMARY | 2.0 |
