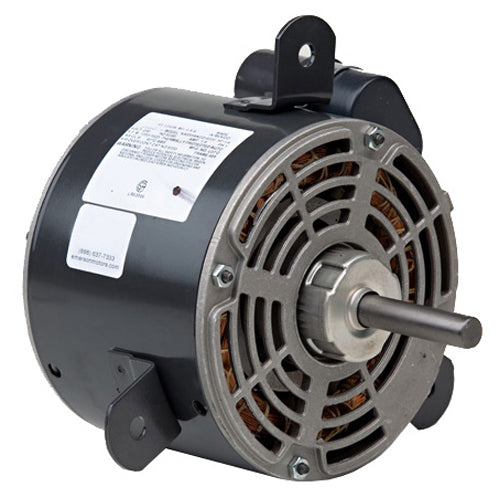

Description
- Permanent Split Capacitor
- Refrigeration Condenser Fan
- Open & Totally Enclosed Air Over
- Horizontal Stud or Bracket Mount
- Capacitor Included
Specifications
| Model_Number | K055TTG0022011B |
|---|---|
| PRODUCT NAME | .25 HP - - 1625 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | .25 |
| KILOWATTS | 0.2 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1625 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230 |
| VOLTS | 230 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 1 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | CCW LEAD END |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 4 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 11 |
| BREAKDOWN TORQUE | 23.98 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 4.788 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| LOCKED ROTOR AMPS | 4.36 |
| NEMA NOMINAL EFFICIENCY | 68 |
| FULL LOAD AMPS PRIMARY | 1.4 |
| SERVICE FACTOR AMPS PRIMARY | 1.4 |
