Description

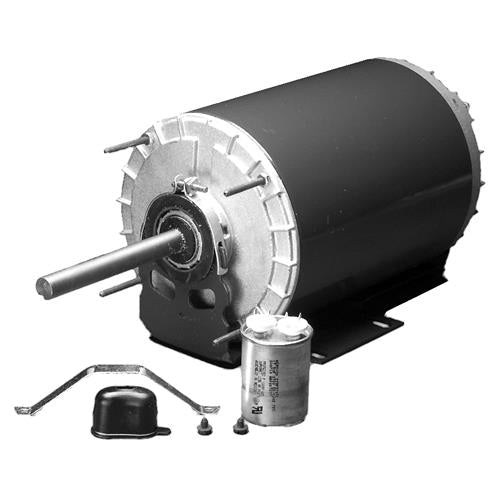

- Permanent Split Capacitor
- Commercial Condenser Fan
- 6.3" Diameter Open and Totally Enclosed
- 60C Ambient Design
- Resilient Base
Specifications
| Model_Number | K0630WG3925892B |
|---|---|
| PRODUCT NAME | 1.5 HP - - 1075 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | 1.5 |
| KILOWATTS | 1.1 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1075 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | Z |
| STATOR DIAMETER | 6.3 |
| STACK | 4 |
| MOTOR TYPE | FHP |
| AMBIENT | 60 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1 |
| SHIPPING WEIGHT | 45 |
| BREAKDOWN TORQUE | 160.2 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 5.14 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| LOCKED ROTOR AMPS | 22.88 |
| FULL LOAD AMPS PRIMARY | 7.5/3.8 |
| SERVICE FACTOR AMPS PRIMARY | 7.5/3.8 |
