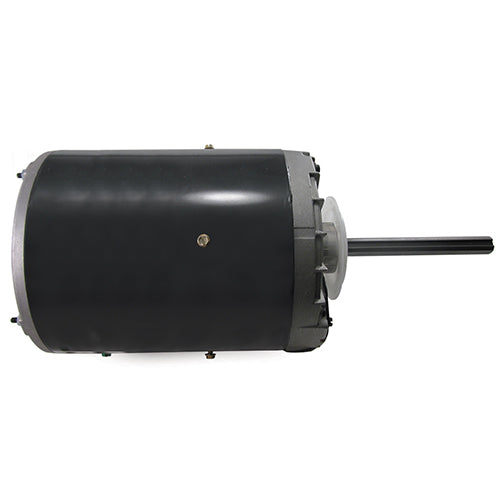

Description
- MOJAVE® Three Phase
- Commercial Condenser Fan
- 6.3" Dia. Open Dripproof Shaft Up
- 70 C Ambient Belly Band
- Voltage Change Device
Specifications
| Model_Number | P063FFN1553015B |
|---|---|
| PRODUCT NAME | 1.5 HP - TEAO - 1140 |
| PHASETYPE | 3_POLYPHASE |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | 1.5 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1140 |
| HERTZ | 60 |
| VOLTS PRIMARY | 200-230/460 |
| VOLTS | 200 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| SHAFT CODE | YZ |
| STATOR DIAMETER | 6.3 |
| STACK | 4.25 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 70 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 37 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | G |
| FULL LOAD AMPS PRIMARY | 5.4-5.0/3.0-2.5 & 4.2/2.1 |
| SERVICE FACTOR AMPS PRIMARY | 6.5-5.8/2.9 |
