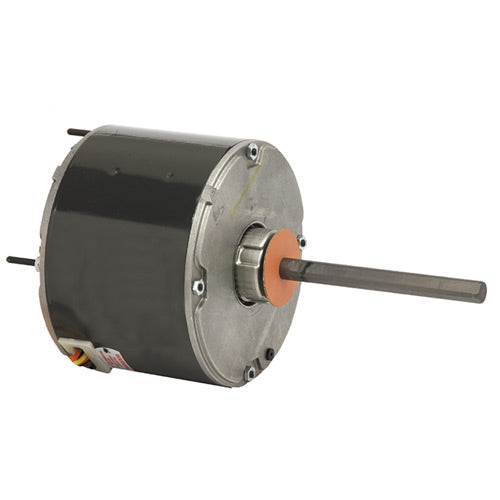

Description
- Permanent Split Capacitor
- Condenser Fan
- 5.6" Dia. Totally Enclosed Air Over
- 60C Ambient Design
- Single or Multi Horsepower
Specifications
| Model_Number | K055TFP8715012B |
|---|---|
| PRODUCT NAME | .25 HP - TEAO - 1625 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | .25 |
| KILOWATTS | 0.2 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1625 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230 V |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 1.25 |
| MOUNTING | STUD/BAND |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | SELF-ALIGN |
| SHAFT END BEARING | SELF-ALIGN |
| AMBIENT | 60 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 5 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 12 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 20.4 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 4.925 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 3.56 |
| FULL LOAD AMPS PRIMARY | 1.4 |
