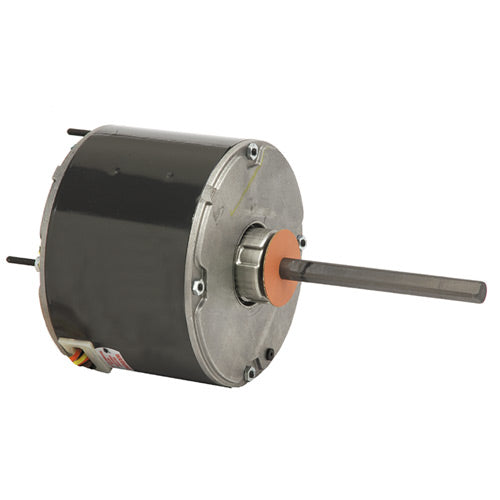

Description
- Permanent Split Capacitor
- Condenser Fan
- 5.6" Dia. Totally Enclosed Air Over
- 60C Ambient Design
- Single or Multi Horsepower
Specifications
| Model_Number | K055TEJ8603012B |
|---|---|
| PRODUCT NAME | .5 HP - TEAO - 825 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | .5 |
| KILOWATTS | 0.4 |
| POLES | 8 |
| NUMBER SPEEDS | 1 |
| RPM | 825 |
| HERTZ | 60 |
| VOLTS PRIMARY | 460 V |
| VOLTS | 460 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 3 |
| MOUNTING | STUD/BAND |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 60 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 10 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 21 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 75.01 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 15.37 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 3.28 |
| FULL LOAD AMPS PRIMARY | 1.55 |
