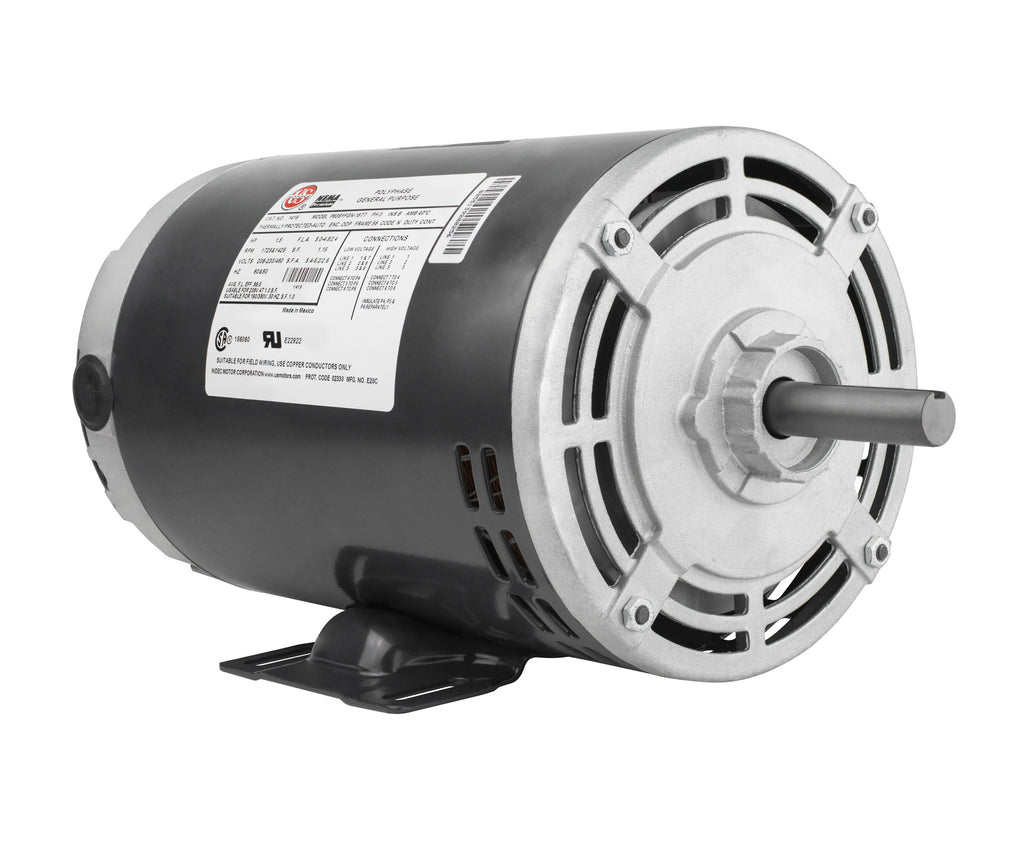

Description
- Three Phase
- Commercial Condenser Fan
- Open Air Over (OAO)
- 60C Ambient Rigid Base Mount
- Flat and Keyway on Shaft
Specifications
| Model_Number | P063FGN1577015B |
|---|---|
| PRODUCT NAME | 1.5 HP - ODP - 1725 |
| PHASETYPE | 3_POLYPHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | 1.5 |
| KILOWATTS | 1.1 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1725 |
| RPM 2 | 1425 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 V |
| VOLTS | 208 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| FRME | 56 |
| STATOR DIAMETER | 6.3 |
| STACK | 3 |
| MOUNTING | RIGID BASE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 34 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 402.2 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 270.4 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | N |
| LOCKED ROTOR AMPS | 38.6 |
| NEMA NOMINAL EFFICIENCY | 86.5 |
| FULL LOAD AMPS PRIMARY | 5.0-4.8/2.4 |
| SERVICE FACTOR AMPS PRIMARY | 5.4-5.2/2.6 |
