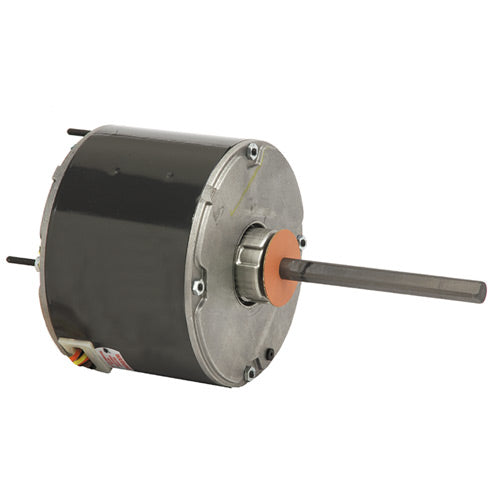

Description
- Permanent Split Capacitor
- Condenser Fan
- 5.6" Dia. Totally Enclosed Air Over
- 60C Ambient Design
- Single or Multi Horsepower
Specifications
| Model_Number | K055RHN1971012B |
|---|---|
| PRODUCT NAME | 1 HP - - 1075 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| HORSEPOWER | 1 |
| KILOWATTS | 0.8 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1075 |
| HERTZ | 60 |
| VOLTS PRIMARY | 460 V |
| VOLTS | 460 |
| FRME | 48 |
| SHAFT CODE | YZ |
| STATOR DIAMETER | 5.5 |
| STACK | 3.969 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| ROTATION | CCW LEAD END REV |
| RUNCAPMFD | 25 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 25 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 124.2 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 23.91 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 6.78 |
| FULL LOAD AMPS PRIMARY | 2.5 |
