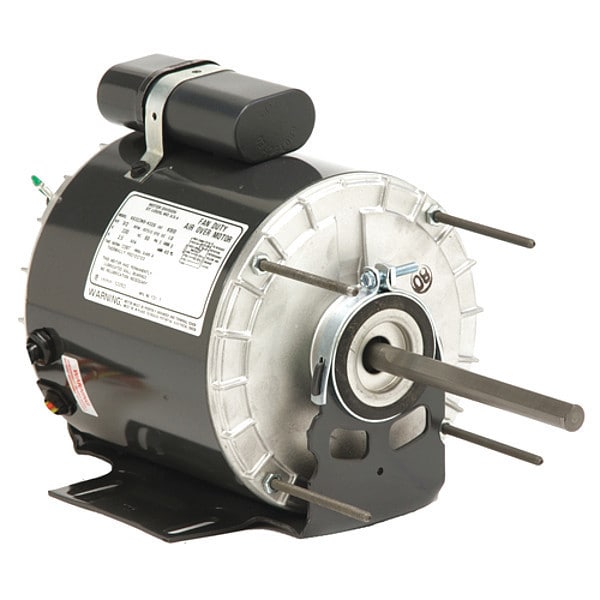

Description
- Permanent Split Capacitor
- Unit Heater Fan
- 5.6" & 6.3" Dia. Totally Enclosed
- Resilient Base
- Capacitor Included
Specifications
| Model_Number | K055RGB1938015B |
|---|---|
| PRODUCT NAME | .167 HP - TEAO - 1075 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | .167 |
| KILOWATTS | 0.1 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1075 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115 V |
| VOLTS | 115 |
| FRME | 48 |
| SHAFT CODE | Z |
| STATOR DIAMETER | 5.5 |
| STACK | 1.219 |
| MOUNTING | RESILIENT |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 40 |
| ROTATION | CCW LEAD END REV |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 7.5 |
| RUNCAPVOLTS | 440 |
| SHIPPING WEIGHT | 12 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 20.39 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 4.339 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | D |
| LOCKED ROTOR AMPS | 5.56 |
| FULL LOAD AMPS PRIMARY | 2.61 |
| SERVICE FACTOR AMPS PRIMARY | 2.61 |
