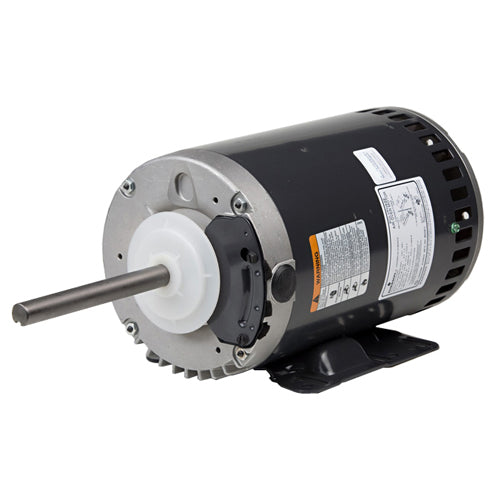

Description
- Three Phase
- Commercial Condenser Fan
- Open Enclosure
- 60C Ambient Design
- Belly Mount
Specifications
| Model_Number | P055TLN1326015B |
|---|---|
| PRODUCT NAME | 1 HP - - 1140 |
| PHASETYPE | 3_PHASE |
| HORSEPOWER | 1 |
| KILOWATTS | 0.8 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1140 |
| RPM 2 | 900 |
| HERTZ | 60 |
| VOLTS PRIMARY | 200-230/460 |
| VOLTS | 200 |
| VOLTS 2 | 230 |
| VOLTS 3 | 460 |
| VOLTS 4 | 190 |
| VOLTS 5 | 380 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 2.75 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 60 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1 |
| SHIPPING WEIGHT | 19 |
| BREAKDOWN TORQUE | 84.07 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 61.65 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 7.63 |
| NEMA NOMINAL EFFICIENCY | 88 |
| FULL LOAD AMPS PRIMARY | 3.5-3.3/1.7 & 4.8/2.4 |
