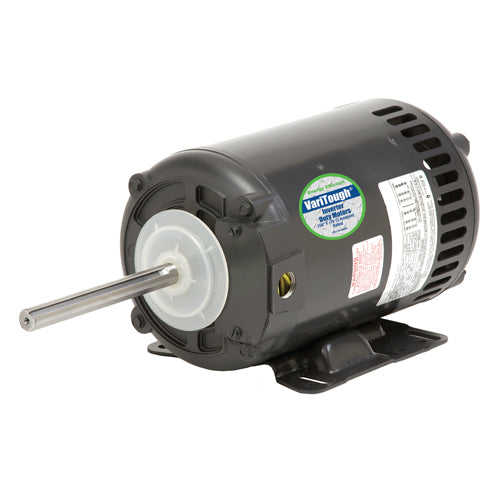

Description
- VariTough® Three Phase Inverter Duty
- Commercial Condenser Fan
- 6.3" Dia. Open Dripproof Shaft Up
- 70 C Ambient Rigid Base
- Shaft Grounding Ring installed
Specifications
| Model_Number | J063HRF0309015B |
|---|---|
| PRODUCT NAME | .5 HP - OPAO - 575 |
| PHASETYPE | 3_POLYPHASE |
| MOTOR ENCLOSURE | OPAO |
| HORSEPOWER | .5 |
| KILOWATTS | 0.4 |
| POLES | 12 |
| NUMBER SPEEDS | 1 |
| RPM | 575 |
| HERTZ | 60 |
| VOLTS PRIMARY | 480 V |
| VOLTS | 480 |
| FRME | 56 |
| SHAFT CODE | HZ |
| STATOR DIAMETER | 6.3 |
| STACK | 4.5 |
| MOUNTING | RIGID |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 60 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1 |
| SHIPPING WEIGHT | 50 |
| THERMAL PROTECTION | THERMOSTAT |
| BREAKDOWN TORQUE | 236.6 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 162.7 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 4.75 |
| NEMA NOMINAL EFFICIENCY | 60 |
| FULL LOAD AMPS PRIMARY | 1.9 |
| SERVICE FACTOR AMPS PRIMARY | 1.9 |
