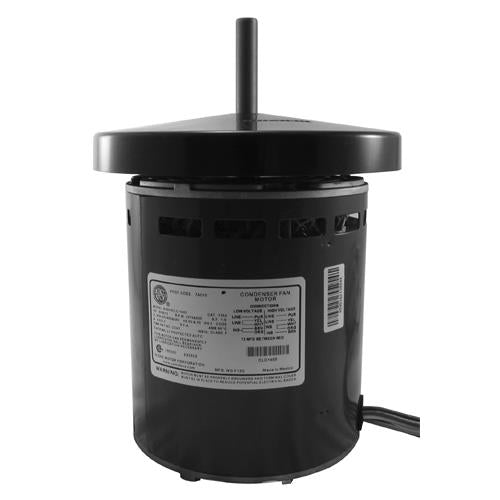

Description
- Permanent Split Capacitor Condenser Fan
- 5.6 Diameter Open Dripproof Air Over
- Enclosed End Sheild at Shaft End
- Mount Vertical Shaft Up
Specifications
| Model_Number | K055DSY1213012B |
|---|---|
| PRODUCT NAME | 1 HP - OAO - 1075 |
| PHASETYPE | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE | OAO |
| HORSEPOWER | 1 |
| KILOWATTS | 0.8 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1075 |
| HERTZ | 60 |
| VOLTS PRIMARY | 575 V |
| VOLTS | 575 |
| FRME | 48 |
| SHAFT CODE | Y |
| STATOR DIAMETER | 5.5 |
| STACK | 4 |
| MOUNTING | NONE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | BALL |
| SHAFT END BEARING | BALL |
| AMBIENT | 60 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 25 |
| RUNCAPVOLTS | 370 |
| SHIPPING WEIGHT | 27 |
| THERMAL PROTECTION | AUTOMATIC RESET |
| BREAKDOWN TORQUE | 143.5 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 31.27 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| LOCKED ROTOR AMPS | 5.94 |
| FULL LOAD AMPS PRIMARY | 2.2 |
| SERVICE FACTOR AMPS PRIMARY | 2.2 |
