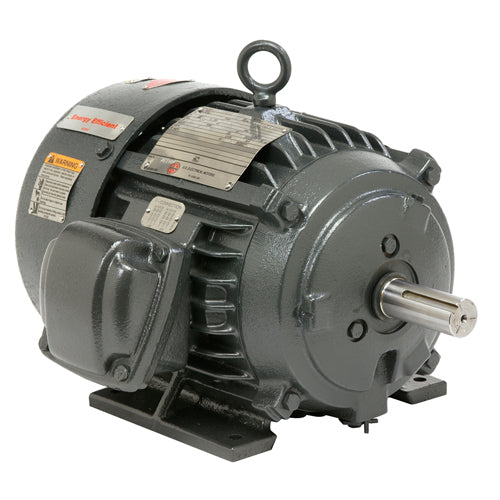

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- Hazardous Location
- Premium Efficient
- Single Label CORRO-DUTY®
Specifications
| Model_Number | FR72 |
|---|---|
| PRODUCT NAME | 7.5 HP - TEFC - 885 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 7.5 |
| KILOWATTS | 5.6 |
| POLES | 8 |
| NUMBER SPEEDS | 1 |
| RPM | 885 |
| RPM 2 | 885 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 256 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | LCE |
| OPPOSITE END BEARING | 6207-J/C3 |
| SHAFT END BEARING | 6309-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 375 |
| INSULATION CLASS | F |
| KVA CODE LETTER | F |
| NEMA NOMINAL EFFICIENCY | 86.5 |
| FULL LOAD AMPS PRIMARY | 23.3/11.7 |
| SERVICE FACTOR AMPS PRIMARY | 25.8/12.9 |
