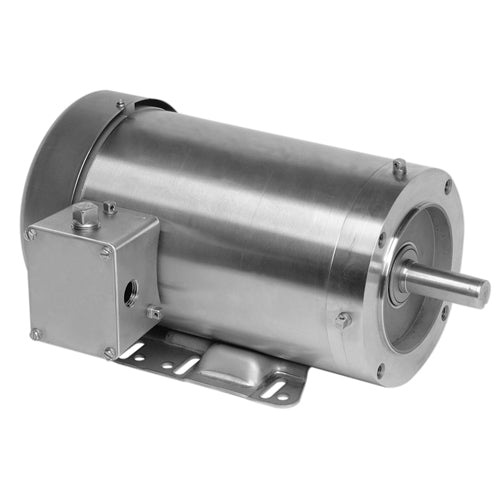

Description
- Special Application Washdown
- Three Phase Totally Enclosed
- All Stainless Steel
- C Face Footless
Specifications
| Model_Number | FP22 |
|---|---|
| PRODUCT NAME | 1 HP - TENV - 3515 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TENV |
| HORSEPOWER | 1 |
| KILOWATTS | 0.7 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3515 |
| RPM 2 | 3515 |
| RPM 3 | 3490 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| FRME | 56 |
| SHAFT CODE | C |
| MOUNTING | HORZ-FOOTLESS |
| ASSEMBLY POSITION | NA |
| MOTOR TYPE | SSEFN |
| OPPOSITE END BEARING | 6203-2RS-J/C3 |
| SHAFT END BEARING | 6205-2RS-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 35 |
| BREAKDOWN TORQUE | 457 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 333 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | M |
| LOCKED ROTOR AMPS | 13.3 |
| NEMA NOMINAL EFFICIENCY | 84 |
| FULL LOAD AMPS PRIMARY | 2.8-2.6/1.3 |
| SERVICE FACTOR AMPS PRIMARY | 3.2-2.9/1.4 |
