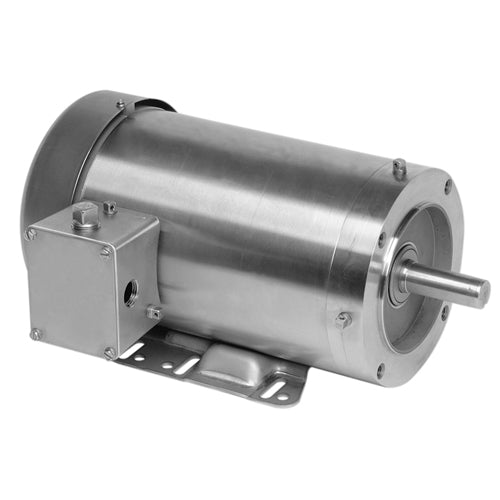

U.S. Motors WDS10P2AC - 10 HP - TEFC - 1760 RPM


Price:
Sale price$2,882.73

Description

  • Special Application Washdown
  • Three Phase Totally Enclosed
  • All Stainless Steel
  • C Face Footed

Specifications

Model_Number FB21
PRODUCT NAME 10 HP - TEFC - 1760
PHASETYPE 3_PHASE
MOTOR ENCLOSURE TEFC
HORSEPOWER 10
KILOWATTS 7.5
POLES 4
NUMBER SPEEDS 1
RPM 1760
RPM 2 1760
RPM 3 1750
HERTZ 60
VOLTS PRIMARY 208-230/460
VOLTS 460
VOLTS 2 230
VOLTS 3 208
FRME 215
SHAFT CODE TC
MOUNTING HORZ-FOOTED
ASSEMBLY POSITION F1
MOTOR TYPE SSE
OPPOSITE END BEARING 6205-2RS-J/C3
SHAFT END BEARING 6208-2RS-J/C3
AMBIENT 40
ROTATION DUAL
SERVICE FACTOR 1.15
STARTCAPMFD N\A
SHIPPING WEIGHT 128
BREAKDOWN TORQUE 300
BREAKDOWN TORQUE UOM PERCENT OF FLT
LOCKED ROTOR TORQUE 235
LOCKED ROTOR TORQUE UOM PERCENT OF FLT
INSULATION CLASS F
KVA CODE LETTER H
LOCKED ROTOR AMPS 80
NEMA NOMINAL EFFICIENCY 91.7
FULL LOAD AMPS PRIMARY 26.5-23.8/11.9
SERVICE FACTOR AMPS PRIMARY 31-27.4/13.7

Technical Data
