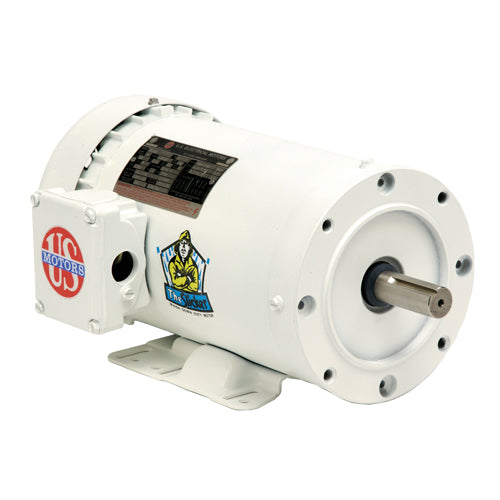

Description
- Special Application Washdown
- Three Phase Totally Enclosed
- Premium Efficient
- C Face Footed
Specifications
| Model_Number | FA06 |
|---|---|
| PRODUCT NAME | 15 HP - TEFC - 3540 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 15 |
| KILOWATTS | 11.2 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3540 |
| RPM 2 | 3540 |
| RPM 3 | 3520 |
| RPM 4 | 2910 |
| RPM 5 | 2910 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 215 |
| SHAFT CODE | TC |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | WE |
| OPPOSITE END BEARING | 6205-2RS-J/C3 |
| SHAFT END BEARING | 6208-2RS-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 154 |
| BREAKDOWN TORQUE | 451 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 289 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 203 |
| NEMA NOMINAL EFFICIENCY | 93 |
| FULL LOAD AMPS PRIMARY | 38-35/17.4 |
| SERVICE FACTOR AMPS PRIMARY | 44-40/19.8 |
