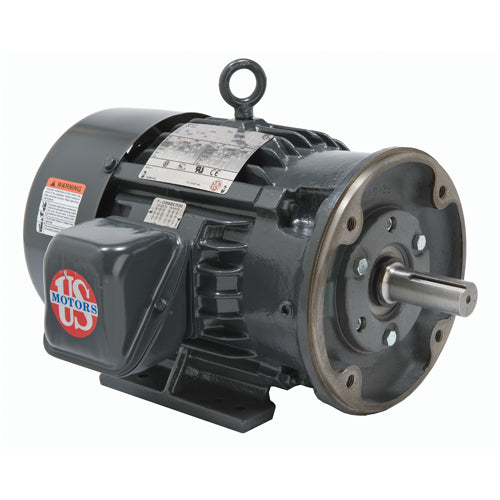

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- HOSTILE DUTY™
- Premium Efficient C Face
- C Face
Specifications
| Model_Number | DP22 |
|---|---|
| PRODUCT NAME | 60 HP - TE - 1785 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TE |
| HORSEPOWER | 60 |
| KILOWATTS | 44.7 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1785 |
| RPM 2 | 1785 |
| RPM 4 | 1480 |
| RPM 5 | 1480 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 364 |
| SHAFT CODE | TC |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | CTE |
| OPPOSITE END BEARING | 6313-2Z-J/C3 |
| SHAFT END BEARING | 6313-2Z-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 740 |
| BREAKDOWN TORQUE | 230 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 178 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 442.7 |
| NEMA NOMINAL EFFICIENCY | 95 |
| FULL LOAD AMPS PRIMARY | 136/68 |
| SERVICE FACTOR AMPS PRIMARY | 157/79 |
