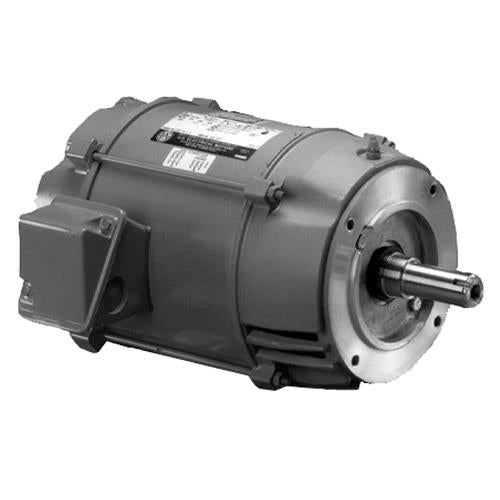

Description
- General Purpose
- Three Phase
- Open Dripproof (ODP)
- Premium Efficient
- C Face Footless
Specifications
| Model_Number | P063FNA1701015B |
|---|---|
| PRODUCT NAME | .33 HP - ODP - 3450 |
| PHASETYPE | 3_POLYPHASE |
| MOTOR ENCLOSURE | ODP |
| HORSEPOWER | .33 |
| KILOWATTS | 0.3 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3450 |
| HERTZ | 60 |
| VOLTS PRIMARY | 575 V |
| VOLTS | 575 |
| FRME | 56 |
| SHAFT CODE | C |
| STATOR DIAMETER | 6.3 |
| STACK | 2 |
| MOUNTING | C-FACE |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | REVERSIBLE |
| SERVICE FACTOR | 1.15 |
| SHIPPING WEIGHT | 35 |
| THERMAL PROTECTION | NONE |
| BREAKDOWN TORQUE | 156.2 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 112.6 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| INSULATION CLASS | B |
| KVA CODE LETTER | M |
| LOCKED ROTOR AMPS | 11.46 |
| SERVICE FACTOR AMPS PRIMARY | 0.69 |
