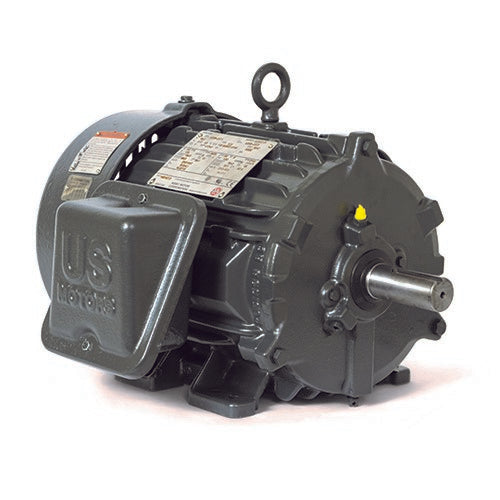

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- World Motor CORRO-DUTY®
- NEMA®† Premium Efficient
Specifications
| Model_Number | GK54 |
|---|---|
| PRODUCT NAME | 250 HP - TEFC-IP55 - 3570 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC-IP55 |
| HORSEPOWER | 250 |
| KILOWATTS | 186.4 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3570 |
| HERTZ | 60 |
| VOLTS PRIMARY | 575 |
| VOLTS | 575 |
| FRME | 449 |
| SHAFT CODE | TS |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | TCE |
| OPPOSITE END BEARING | 6313-J/C3 |
| SHAFT END BEARING | 6313-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 2240 |
| BREAKDOWN TORQUE | 273 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 98 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 1523 |
| NEMA NOMINAL EFFICIENCY | 95.8 |
| FULL LOAD AMPS PRIMARY | 216 |
| SERVICE FACTOR AMPS PRIMARY | 248 |
