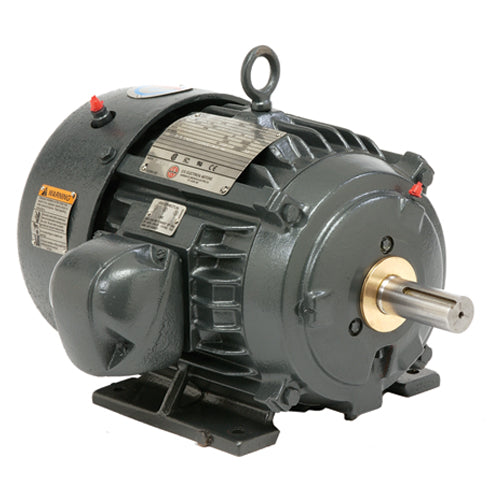

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- 841 PLUS®
- NEMA®† Premium Efficient
Specifications
| Model_Number | FJ95 |
|---|---|
| PRODUCT NAME | 350 HP - TEFC - 3575 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 350 |
| KILOWATTS | 261 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3575 |
| HERTZ | 60 |
| VOLTS PRIMARY | 460 |
| VOLTS | 460 |
| FRME | 449 |
| SHAFT CODE | TS |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | JCE |
| OPPOSITE END BEARING | 75BC03J3 |
| SHAFT END BEARING | 75BC03J3 |
| AMBIENT | 40 |
| ROTATION | UNI-DIRECTIONAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 2800 |
| BREAKDOWN TORQUE | 255 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 119 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 2756.6 |
| NEMA NOMINAL EFFICIENCY | 95.8 |
| FULL LOAD AMPS PRIMARY | 374 |
| SERVICE FACTOR AMPS PRIMARY | 432 |
