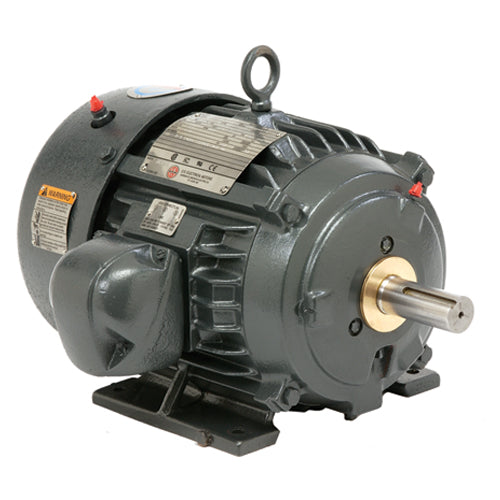

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- 841 PLUS®
- NEMA®† Premium Efficient
Specifications
| Model_Number | FC76 |
|---|---|
| PRODUCT NAME | 200 HP - TEFC - 3575 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 200 |
| KILOWATTS | 149.2 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3575 |
| HERTZ | 60 |
| VOLTS PRIMARY | 460 |
| VOLTS | 460 |
| FRME | 447 |
| SHAFT CODE | TS |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | CE |
| OPPOSITE END BEARING | 65BC03J3 |
| SHAFT END BEARING | 65BC03J3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 2100 |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| NEMA NOMINAL EFFICIENCY | 96.2 |
| FULL LOAD AMPS PRIMARY | 217.0 |
| SERVICE FACTOR AMPS PRIMARY | 250.0 |
