Description

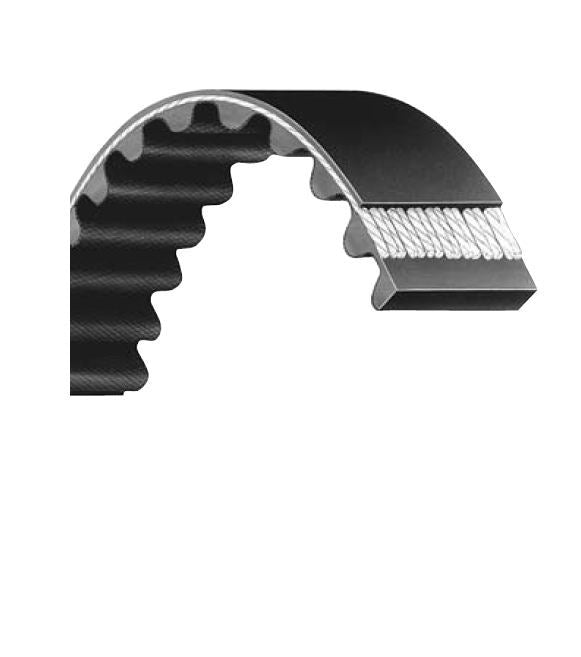

Bando - TB282 timing belts are designed and built to provide the positive, no-slip drive requirements needed for demanding overhead cam applications.
- Rubber backing resists abrasion, oil, and heat.
- Tensile cord is engineered and treated for maximum load carrying capabilities - won't stretch.
- Precision molded teeth are protected by durable fabric facing for long life.
Additional Information
Price Class540
Weight (lbs)0.2624
Number of Teeth286
Tooth Pitch (In)0.5512
Tooth Pitch (mm)14
Tooth ProfileDS14M
Multiplier0.5518
Belt Width (In)3.15
Belt Width (mm)80
ColorBlack
Ribs/Teeth/Angle0
CordFiberglass
Height (In)0.5059
Height (mm)12.85
MaterialNeoprene
Nominal Outside Length (In)157.6378
Nominal Outside Length (mm)4004
